 DPDT ON-ON-ON Rocker Switch JBT MR1-232 - Configureable to SP3T
Item Details
DPDT ON-ON-ON Rocker Switch JBT MR1-232 - Configureable to SP3T
Item Name
DPDT ON-ON-ON Rocker Switch JBT MR1-232 - Configureable to SP3T
Item #
SWRK0047
Other Part Numbers
B232J1WQ2
Price/ea
$8.85

Product Image Gallery
DPDT ON-ON-ON Rocker Switch JBT MR1-232 - Configureable to SP3T

JBT MR1-232 Miniature DPDT Rocker Switch

Contact Arrangement:  DPDT
Switch Function: THREE-position, ON-ON-ON
Contact Current Rating:  6A/125VAC, 3A/250VAC (Derated in SP3T operation to 2A/125VAC)
Terminals:  Wirewrap Terminals, gold plated, accept solder and aresuitable for PCB insertion

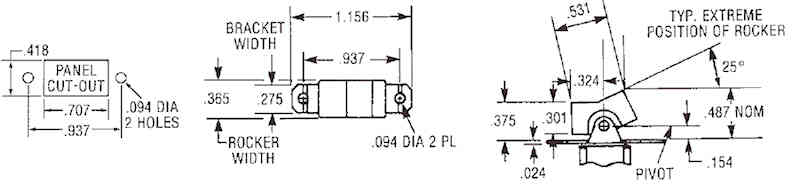

Mounting Style:  Panel - Flange, Holes on 0.937" center
Actuator Characteristics: Black 0.365" Wide Rocker

Electroswitch Equivalent:  B232J1WQ2

Includes Mounting Hardware - 2 screws, 2 nuts, 2 spacers, 2 washers, for behind-the-panel mounting.

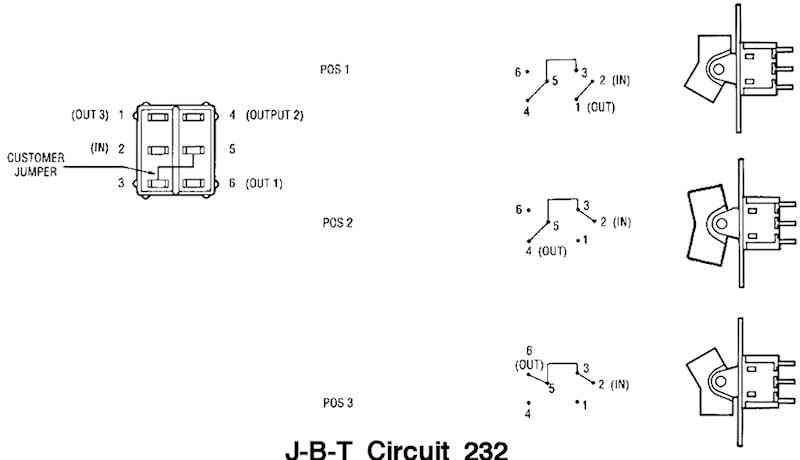

***** Unique SP3T Operation with added jumper - see image with wiring diagram. *****



8 IN STOCK
Quantity


 6A DPDT ON-ON-ON (Three Positions, Maintained) Miniature Rocker Switch with wire-wrap leads that are suitable for PCB insertion and accept solder connections. Uniquely able to be configured as SP3T (one of three) switch.
